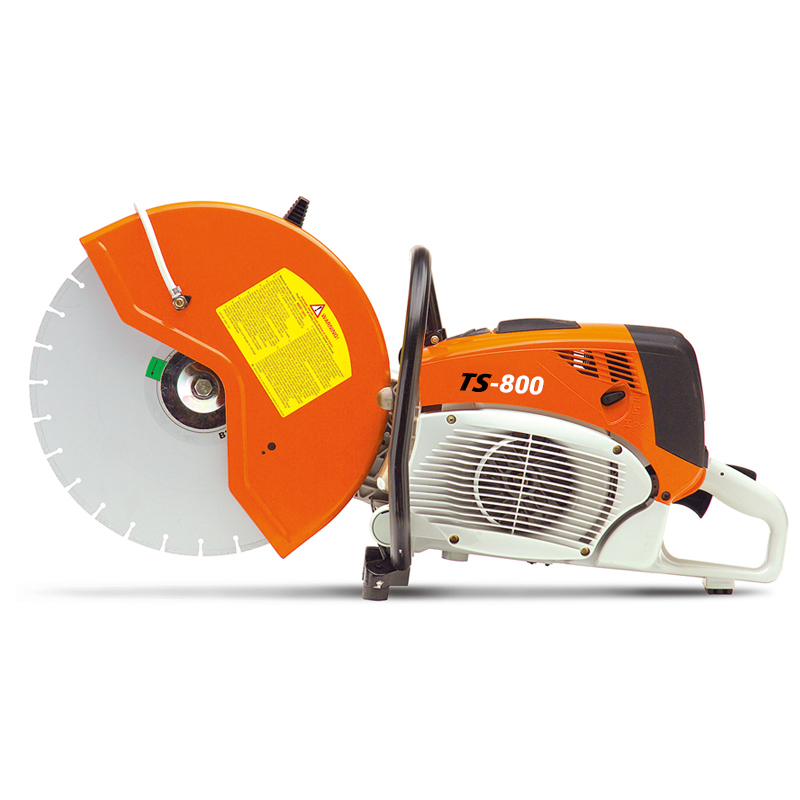

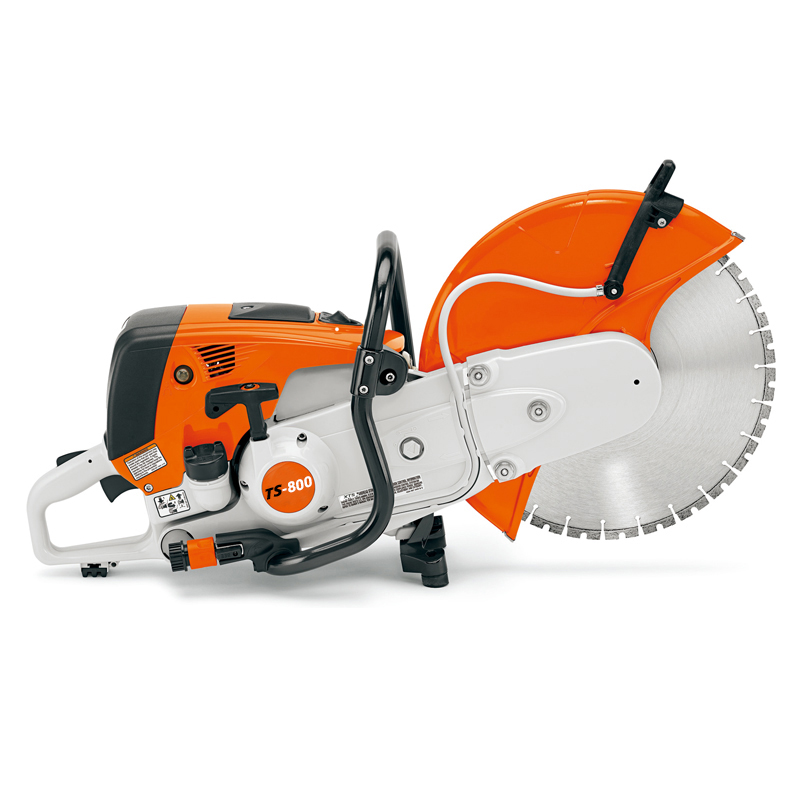

High quality cutquik professional cut off saw TS800 16''
TS800 CUT OFF SAW
$1400.00$699.00
High quality cutquik professional cut off saw TS800 16''
SPECIFICATIONS:
Item Name | Gasoline Powered Cut off Saw |
Model No. | TS800 |
Engine | Single Cylinder,Two-Stroke, Air Cooled |
Displacement | 98.5cc |
Power | 5.0KW/6.8HP (Power according to ISO 7293 at 9300rpm) |
Cylinder Inner Diameter | 56mm |
Piston Stroke | 40mm |
Engine Idle Speed | 2200rpm |
Max.Spindle Speed | 4290rpm(According to ISO 19432) |
Ignition System | Electronic Magneto Igniton |
Spark Plug | NGK BPMR 7A |
Electrode Gap | 0.5mm |
Fuel System | All-position diaphragm carburetor with intergral fuel pump |
Fuel Tank Capacity | 1200ml(1.2L) |
Air Filter | Main filter(paper filter) and flocked wire mesh auxiliary filter |
Weight | 12.7KG±0.8KG (Without fuel,without abrasive wheel) |
Installable abrasive wheels | Outer Diameter:400mm Max.thickness:4.8mm Hole diameter/Spindle diameter:20mm Tightening torque:30Nm |
MAX CUTTING SIZE: 16’’
PACKING SIZE:89*33*49CM
· New anti-vibration system reduces the transmission of engine vibrations to the operator’s arms and hands.
· A long-life air filter system (cyclone air routing) ensures that 80% of dust particles are separated and transported out into the surrounding air extending the cleaning intervals for the foam pre-filter.
· New EasyStarter allows smooth starting without abrupt power peaks, making starting the machine considerably easier.
· Manual fuel pump (purger). As a result, fewer strokes are needed to resume operations following extended breaks.
· The TS800’s compensator prevents the fuel-air mixture from getting richer as the air filter becomes clogged. Keeps the fuel/air ratio in the combustion mixture constant and hence also the engine power. The filter doesn’t need to be cleaned until an appreciable drop in power occurs.
· Decompression valve reduces pressure in the cylinder which means less effort is required to start the TS800’s engine
· Ergonomic grip position allows each user to work with an optimal grip position with loop handle facilitating excellent cutting comfort in any working position.
